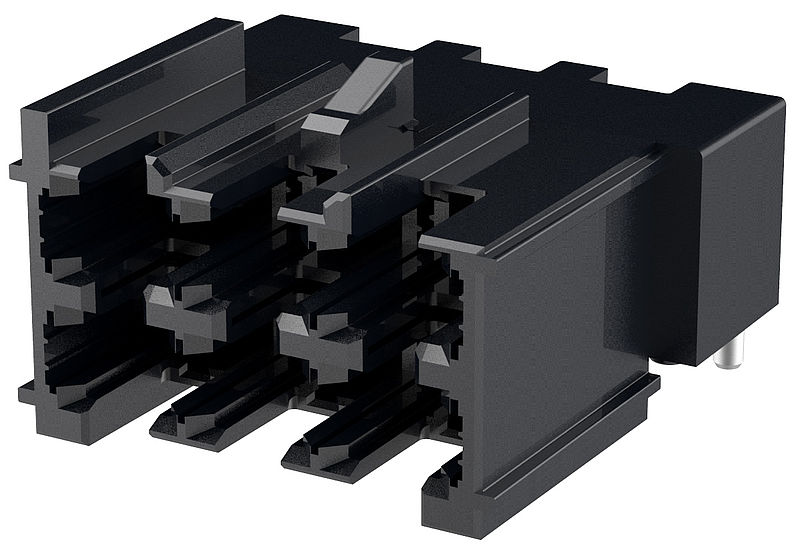

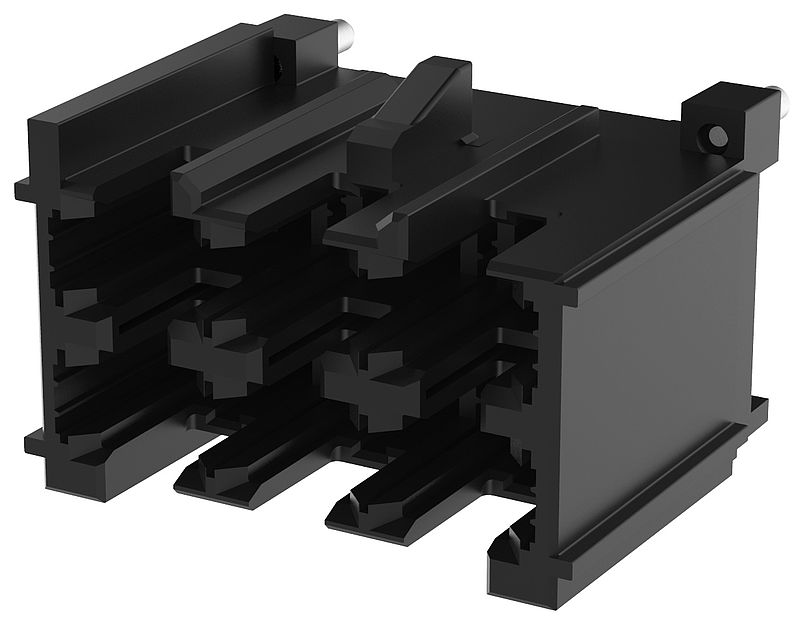

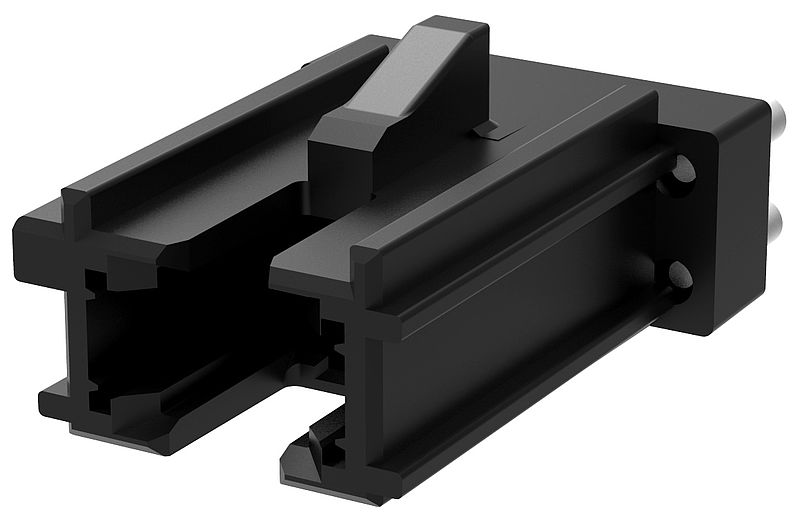

AMEC

Complementing its standard HV connector portfolio, Rosenberger develops and manufactures customer-specific high-voltage components for electric and hybrid vehicles. These enable the lowest possible transition resistances, ensuring long-term low-loss performance and reliability in critical electrical systems such as those for battery charging, cell management, heating, and air conditioning. From concept to final delivery, Rosenberger high voltage custom components are the perfect fit every time. Using its component toolkit, including PDUs, Y-splitters, Busbars and Cell Modules, Rosenberger can develop and manufacture a wide array of tailor-made solutions. These are designed and configured precisely to the relevant vehicle architecture, allowing ideal combinations of the various fuses, relays and other passive and active components required. Power Distribution Units (PDU) Power distribution units (PDU) for vehicles have multiple power input and outputs and use all kinds of connectors, fuses, and relays. In these cases, the PDU generally forms the central link between the vehicle power electronics and batteries, electric motors, and other ancillary units. Y-Splitters Y-splitters are used to distribute the power from one cable harness to two or more units, e.g., between a DC/DC converter and an electric air-conditioning unit. Rosenberger can design Y-splitters for applications with and without shielding for cable cross sections from 4 mm² to 95 mm² in collaboration with the customer. Cell Module Connectors The Rosenberger HV portfolio also includes cell module connectors. These connectors are required to link battery modules within a battery pack. For typical battery applications, multiple custom-designed battery connection points are required. Based on the robust pressure contact system, Rosenberger offers cell module connectors without flexing parts in the contact area. Systems from 100 to 350 A are available. Different assembly directions, coding variants as well as cross sections can be implemented according to customer-specific requirements.

Rosenberger offers a wide range of low-PIM transmission line devices to support high quality RF transmission line designs and deployments, and high performance TMAs to ensure high data through-put and thereby less dropped calls and improved network quality.

Rosenberger RPC-7 “hermaphroditic” connectors with 7 mm diameter at outer contact are designed for precision measurements up to 18 GHz and are suitable for semi-rigid cables and microwave components. Mating electrically with center and outer conductor by end-surface (butt) contact, the mechanical connection is designed as a counter-sinkable threaded socket. For total flexibility, these low reflection connectors are intermateable with all common 7 mm series connectors including APC-7, PC-7, GPC-7 or Precifix AA. Furthermore, RPC-7 and RPC-N connector heads are interchangeable using the same bead type. The wide product range comprises connectors and connector heads, adaptors, interchangeable port connectors, airlines as well as test & measurement accessories such as RPC-7 calibration and verification kits, test cables, attenuators or measurement equipment (open – short – load).
