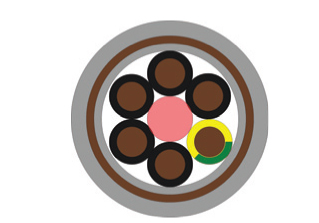

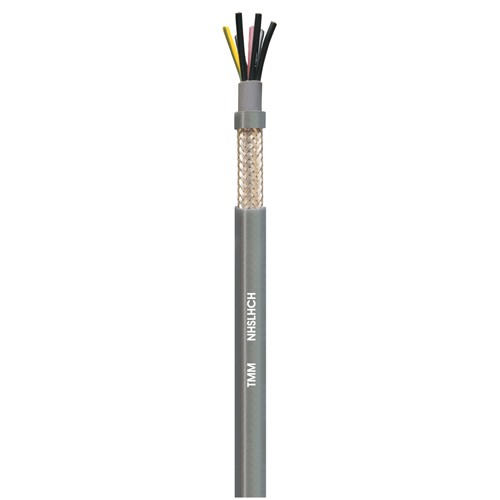

NHSLHCH

1-CONDUCTOR : IEC-60228; DIN VDE 0295; EN 60228 CLASS-5 STRANDED ELECTROLITIC COPPER 2-INSULATION: DIN VDE 0281/1 TI2;TS 9756 HD 21.1 S4 TI2 PVC COMPOUND 3-COLOUR CODE: DIN VDE 0293;TS EN 50334;BLACK INSULATED CORES WITH WHITE NUMBER IMPIRINTED 4-STRANDING: IN LAYERS OF OPTIMUM PITCH 5-WRAPPING: PES TAPE 6-SCREEN: TINNED COPPER BRAIDING(MIN %85 COVERAGE) 7-SHEATH: DIN VDE 0281/1 TM2;TS 9756 HD 21.1 S3 TM2 PVC COMPOUND 8-SHEATHV COLOUR: RAL 7001 GREY

1-CONDUCTOR : IEC-60228; DIN VDE 0295; EN 60228 2-INSULATION: DIN VDE 0207 PART-2 YI3 PVC COMPOUND 3-COLOUR CODE: BS-5308 PART-1 OR BLACK-WRITE; EACH PAIR NUMBERED 4-STRANDING: PAIRWISE, PAIRS IN LAYERS AND 1 NUMBER COMMUNICATIOON CORE 5-WRAPPING: PES TAPE 6-SCREEN: TINNED COPPER DRAIN WIRE; AL PES TAPE 7-SHEATH: DIN VDE 0207 PART-5 YM1 PVC COMPOUND 8-SHEATHV COLOUR: RAL 5015* BLUE;9005* BLACK OR RAL 7032 GREY* 9-INNER SHEATH: POLYETHYLENE COMPOUND 10-ARMOUR: GALVANIZED STEEL WIRE BRAIDING

1-CONDUCTOR : IEC-60228; DIN VDE 0295; EN 60228 2-INSULATION: DIN VDE 0207 PART-4 YI3 PVC COMPOUND 3-COLOUR CODE: BS-5308 PART-2 OR BLACK-WRITE; EACH PAIR NUMBERED 4-STRANDING: PAIRWISE, PAIRS IN LAYERS AND 1 NUMBER COMMUNICATIOON CORE 5-WRAPPING: PES TAPE 6-OVERALL SCREEN: TINNED COPPER DRAIN WIRE; AL PES TAPE 7-SHEATH: DIN VDE 0207 PART-5 YM1 PVC COMPOUND 8-SHEATHV COLOUR: RAL 5015* BLUE;9005* BLACK OR RAL 7032 GREY*

1-CONDUCTOR : IEC-60228; DIN VDE 0295; EN 60228 2-INSULATION: DIN VDE 0207 PART-4 YI3 PVC COMPOUND 3-COLOUR CODE: BS-5308 PART-2 OR BLACK-WRITE; EACH PAIR NUMBERED 4-STRANDING: PAIRWISE, SCREENED PAIRS IN LAYERS AND 1 NUMBER COMMUNICATIOON CORE 5-WRAPPING: PES TAPE 6-OVERALL SCREEN: TINNED COPPER DRAIN WIRE; AL PES TAPE 7-SHEATH: DIN VDE 0207 PART-5 YM1 PVC COMPOUND 8-SHEATHV COLOUR: RAL 5015* BLUE;9005* BLACK OR RAL 7032 GREY* 9-INDIVIDUAL SCREEN:PES TAPE, TINNED COPPER DRAIN WIRE AL-PES TAPE
