4.1-9.5

Ürün Kodu OEN5DW

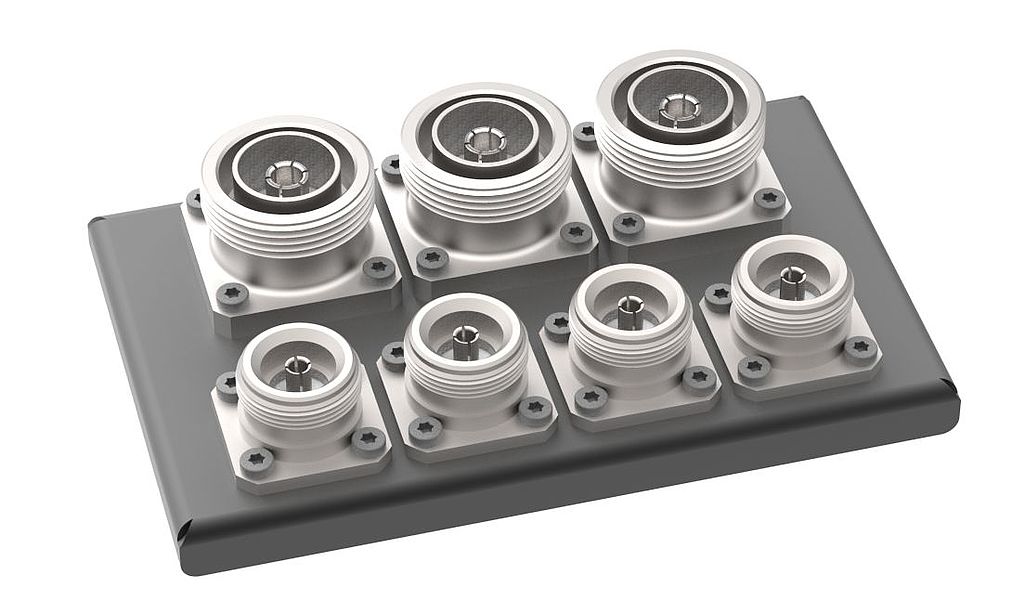

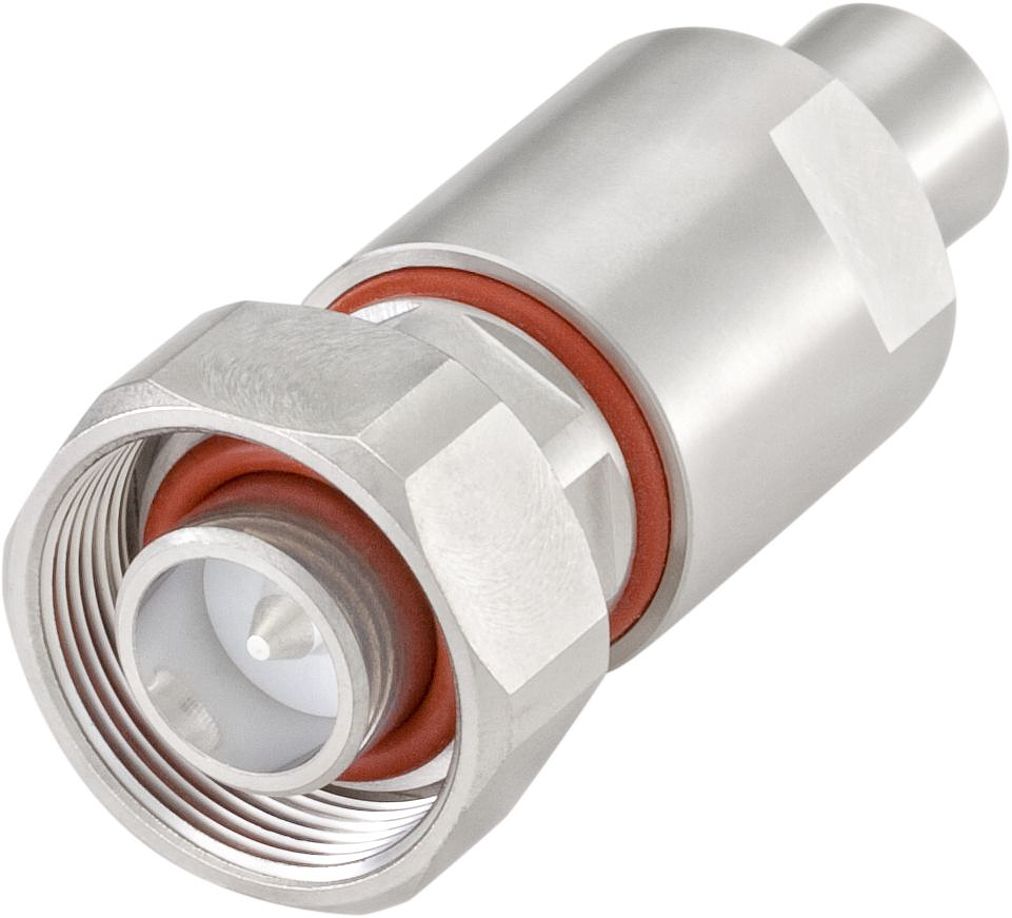

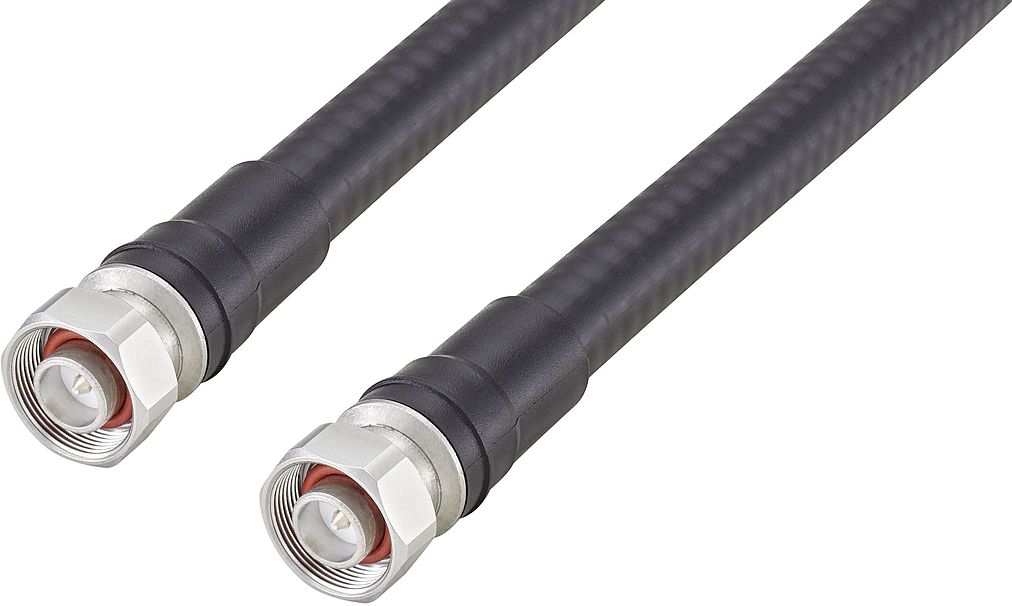

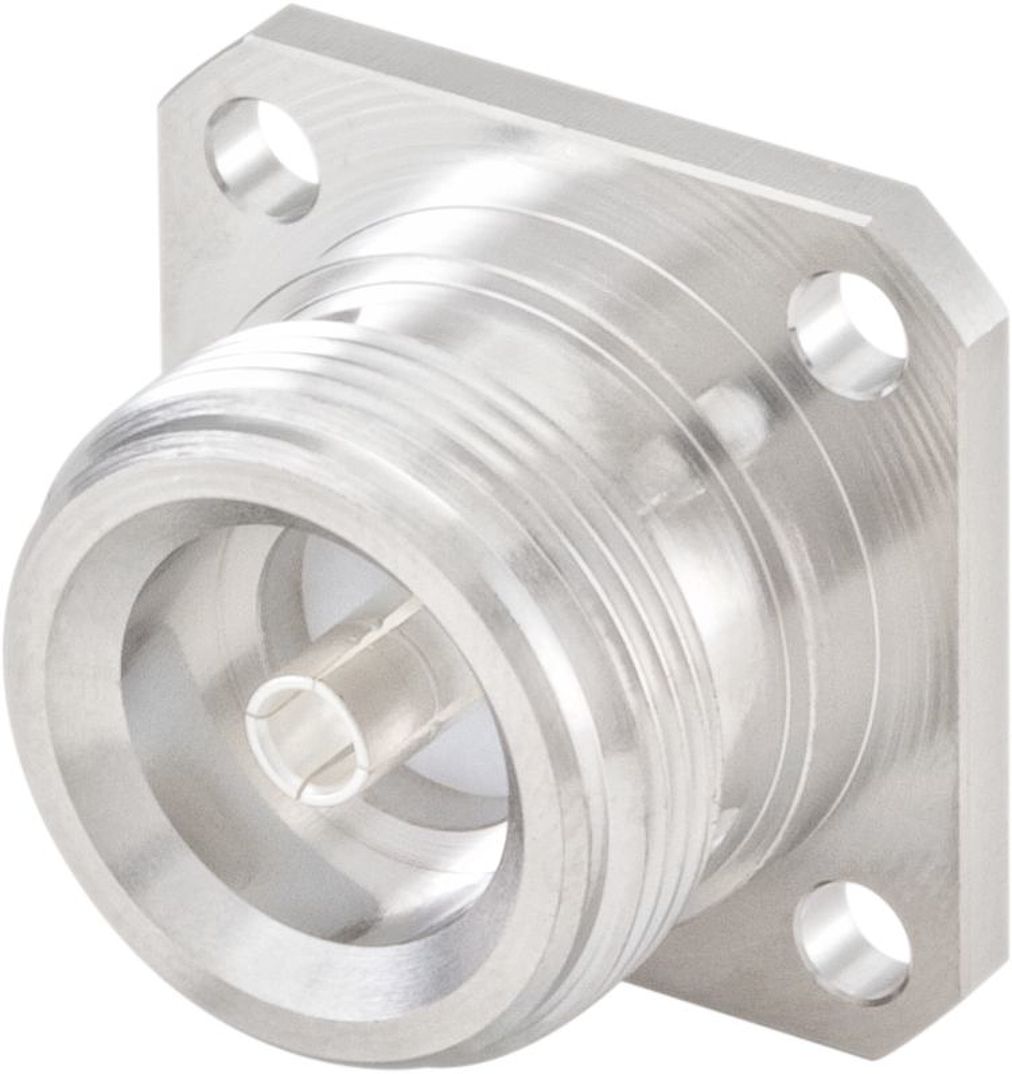

4.1-9.5 coaxial connectors, screw-on locking, for frequencies up to 14 GHz, screw-on are robust and weatherproof. With smaller dimensions than 7-16 series solutions, making them ideal for mobile communication environments.

Rosenberger

Impedance 50 Ω
Interface according to IEC 60169-11, DIN 47231
Frequency range DC to 14 GHz
Return loss (cable connector straight):
≥ 30 dB @ DC to 0.5 GHz
≥ 23 dB @ 0.5 GHz to 4 GHz
≥ 20 dB @ 4 GHz to 10 GHz
Mating cycles ≥ 500
Minimum pitch ≥ 25.4 mm
Screw-on locking mechanism
