FAKRA
Ürün Kodu 22W8DC

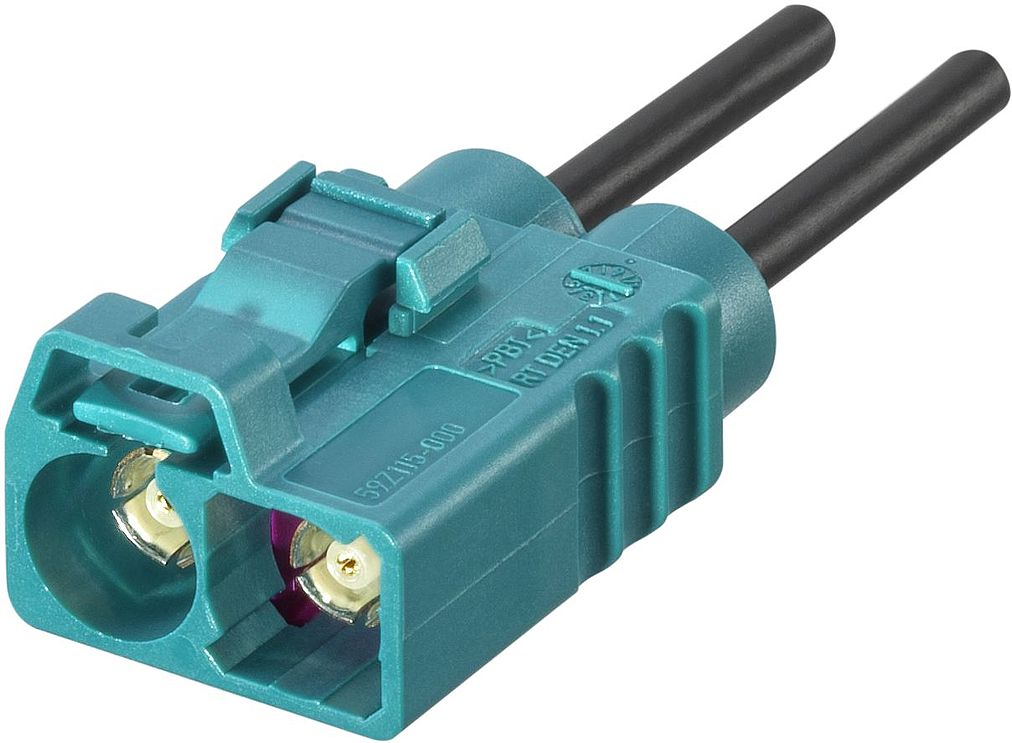

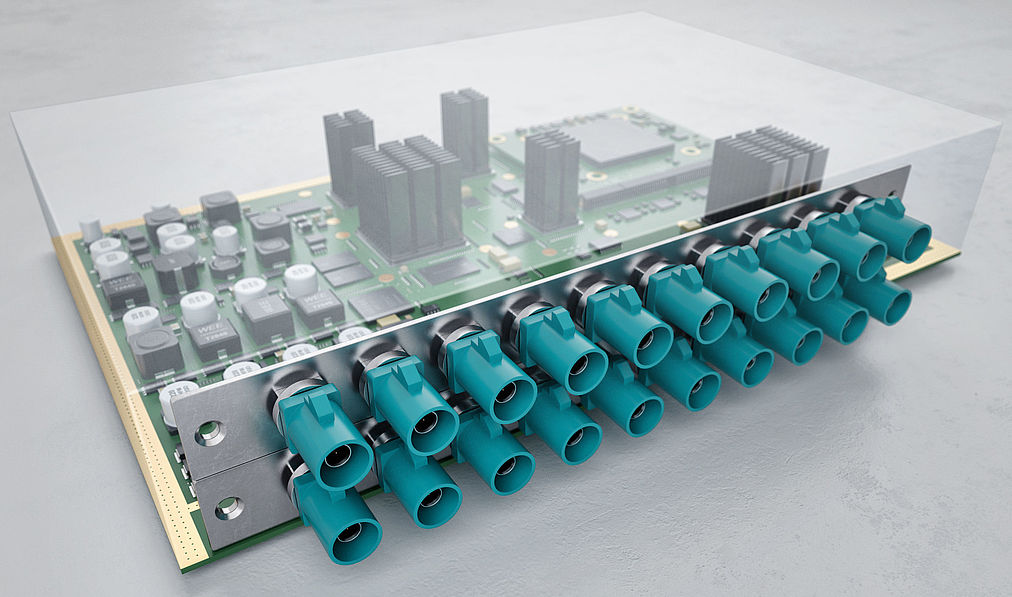

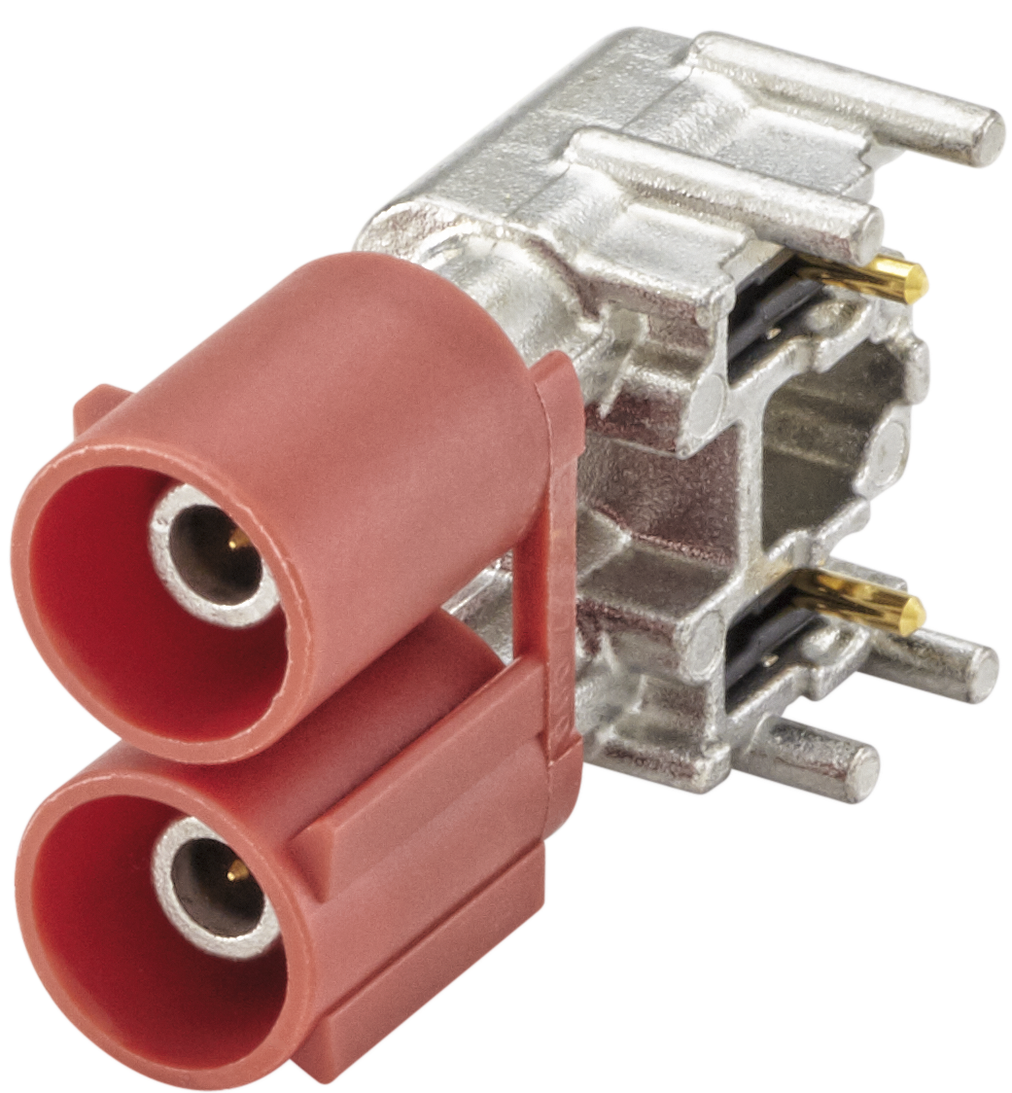

Rosenberger FAKRA* industry standard compatible connectors are designed to fulfill the rigorous mechanical and environmental requirements of the automotive industry. Ensuring maximum electrical and mechanical performance, these high quality FAKRA connectors feature specific color coded plastic housings in accordance with the FAKRA coding industry standard. Thirteen distinct mechanical and color codes enable easy identification and unique keying to avoid mis-mating and additional one neutral coding. Combining Rosenberger’s turned part production expertise and FAKRA SF stamped and formed technology these precision manufactured products are ideally suited for process-safe and fully automated assembly by harness makers – leading to a significant reduction in production costs. Rosenberger FAKRA products are compliant to ISO 20860-1 & 2 and USCAR 18 standards.
- Impedance 50 Ω
- Specifications according ISO 20860-1 & US-Car 18
- Frequency range DC up to 6 GHz
- High data rates up to 8 Gbps
- Return loss ≥ 18 dB
- Temperature range from -40 °C to +105 °C
- Mating cycles ≥ 25
- 13 mechanical and colored codings and one neutral coding
- Primary and secondary lock
- Stamped parts on separate coils (center contact, support sleeve, connector head plug)
HTS-12 is designed for stripping single count of silica optical fiber by keeping the stripped fiber's glass surface free from any physical contact. In order to achieve the above condition, the HTS-12 has a precise linear slide base for stripping action. The fiber is not scuffed by the blade or any other materials when being stripped. The HTS-12 is equipped with a heater to soften the fiber coating. The HTS-12 accepts the FH-40 series and FH-100 series Fiber Holder System
Ürün Başarıyla Sepete Eklendi
The RosenbergerHPD® universal multicore datalink connection system is optimized for data transmission up to 10 Gbps. In addition to high data performance, the centrally positioned power lane offers a power reserve of up to 100 W / 5 A – in combination with the cable shield as the ground lane. Providing data and power to complex systems through a single interface delivers several benefits including reduced costs and installation footprint. This robust, fully shielded connector is ideally suited to harsh environmental conditions, such as automotive applications, where frequent high data transmission and ampacity is required. Combined with Rosenberger’s specially designed multicore cable, featuring an optimized layout for low attenuation, virtually interference- and crosstalk-free performance is assured.
Ürün Başarıyla Sepete Eklendi
Rosenberger MCX 50 Ω coaxial connectors feature a snap-on locking mechanism. They are mainly applied in RF cable connections up to 6 GHz such as those found in fixed and wireless communication systems. MCX connectors offer high reliability, long service life, as well as easy and fast mounting. The PCB connectors are supplied in tape and reel packaging for automatic assembly to boards and in blisters. MCX connectors with 75 Ω characteristic impedance are available on request.
Ürün Başarıyla Sepete Eklendi
Optical fiber cleaver by Fujikura's technologies as world-wide leader of fusion splicers. The technologies make the operation easy and the cleaving quality good.
