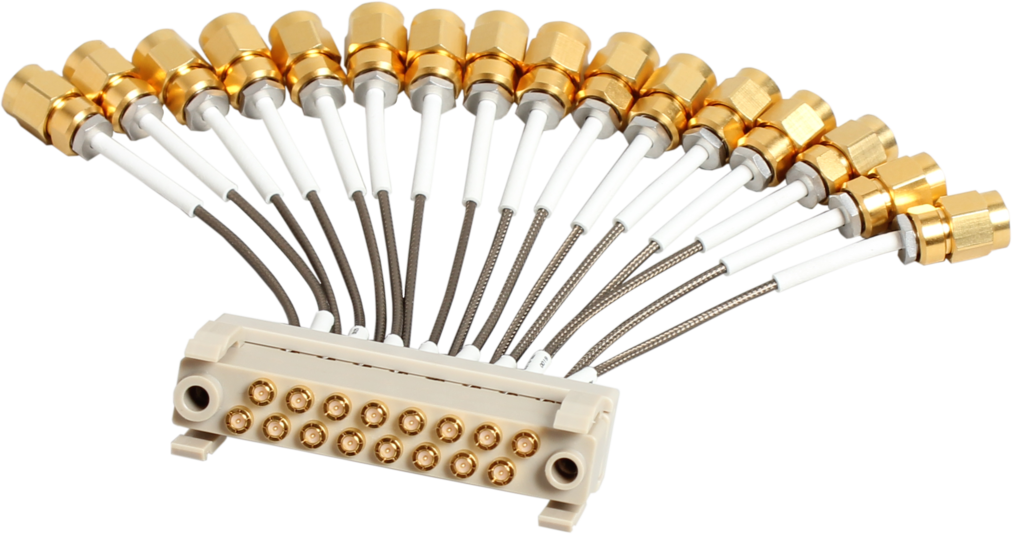

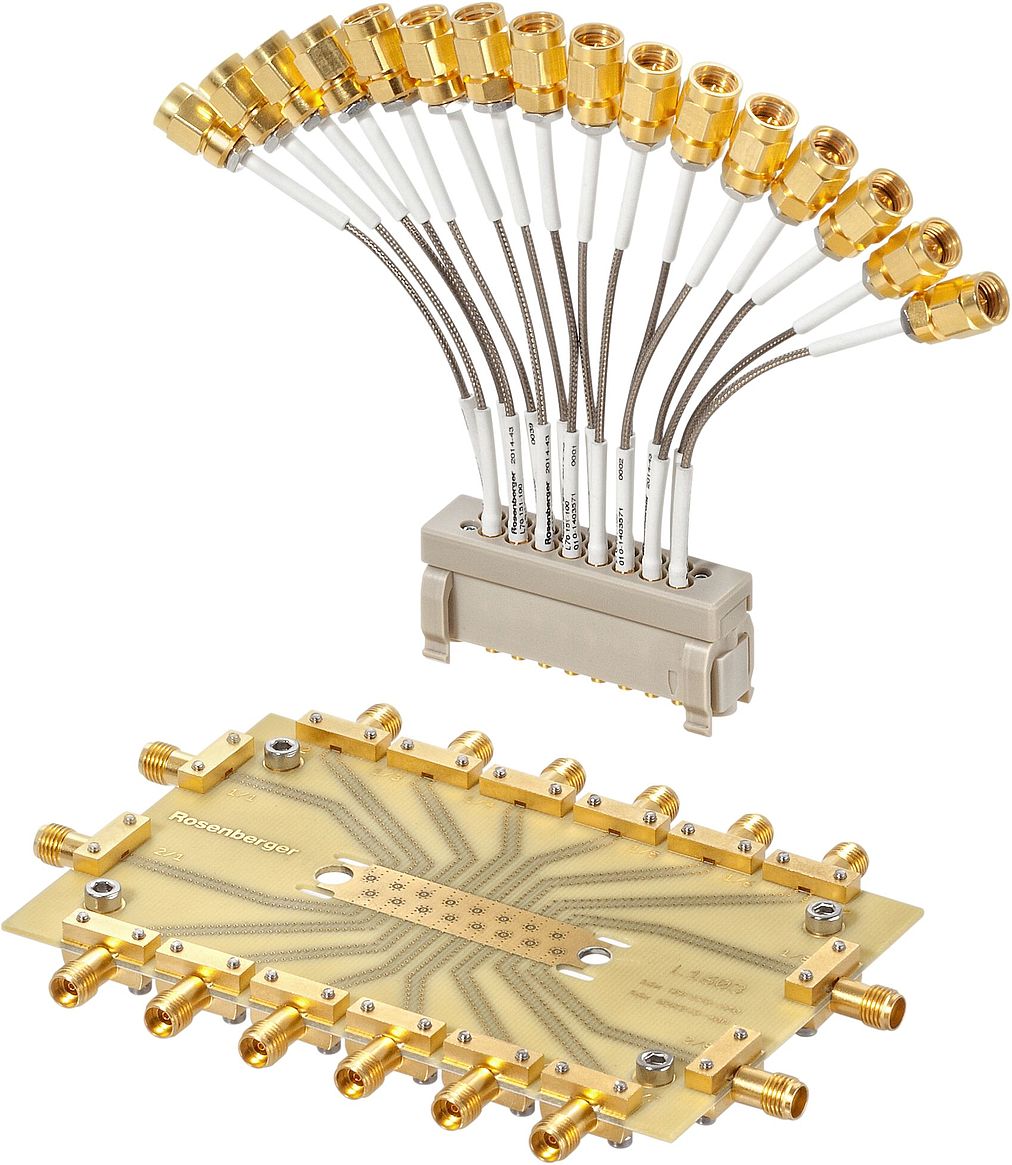

Spring Loaded Coax System

Rosenberger provides a variety of snap-in D-Sub coaxial and power inserts for fast, reliable mixed card edge chassis. Their small dimensions allow high packing densities as well as easy connection. A combination including power connectors is also available on request. D-Sub Coax Inserts and cable connectors 50 Ω are designed for use in mixed card edge connections in accordance to D-Sub. The maximum frequency is approximately 2 GHz. Available on request. Power Inserts meet the requirements of DIN 41626-T1 and are designed for use in mixed card edge connections in accordance to DIN 41612 or D-Sub. Contact current 10 A, 20 A, 30 A, 40 A. Available on request.

For ensuring fast and easy connection Rosenberger RoDI® connectors comprise five contacts and a magnetic self-mating locking mechanism. They are ideally suited to diagnostic and data transfer in building services, industrial control and bus systems, even for use in harsh environments.

Rosenberger RPC-1.85 precision connectors – with 50 Ω impedance and 1.85 mm outer conductor diameter – are designed for test & measurement applications up to 70 GHz. Delivering outstanding reliability and repeatability performance they are intermateable with common 1.85 mm series and V connectors as well as with RPC-2.40 connectors. This comprehensive product range is suitable for semi-rigid cables and microwave components and includes cable, panel and PCB connectors, adaptors and test & measurement accessories – including RPC-1.85 calibration kits, cables assemblies, measurement equipment, attenuators, sliding loads and airlines.

Rosenberger RPC-3.50 precision connectors, with an outer diameter of 3.50 mm, are air dielectric and include ruggedized versions. Their high specification ensures excellent performance in precision measurement microwave applications – over the full frequency range up to 26.5 GHz. They are intermateable with common 3.50 mm, SMA, K and RPC-2.92 connectors.
