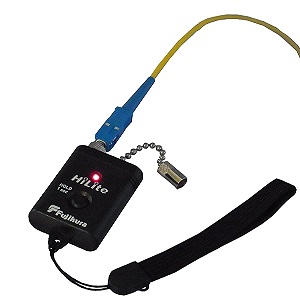

Visual fault identifier FVI-01 "HiLite"

SS03 have three holes. The smallest hole is for stripping 250 um cable down to glass fiber. The second hole is for stripping 900 um buffer coating down to 250 um buffer coating. The biggest hole is for stripping 2-3mm fiber jacket down to 900 um buffer coating.

The 90R16 is a mass fusion splicer capable of splicing up to 16 fiber ribbon cables simultaneously. In previous mass fusion splicer models, the v-grooves could become dirty over time due to debris and glass deposits from splicing accumulating in the v-grooves. Which in turn, could lead to fibre offsets and high losses if they were not regularly cleaned which added to the overall process time. The 90R16 comes with a first of its kind, innovative user replaceable V-groove assembly which makes this issue a thing of the past and is supplied as standard equipment with the 90R16 kit. This new V-groove assembly can be quickly and easily fitted in the field, minimizing downtime and maximising productivity. In addition, the new V-groove design enables splicing of both conventional type 12-fiber encapsulated ribbon and SWR (Spider Web Ribbon) whilst also accommodating 250um and 200um pitch fibers. The 90R16 can also splice single fibers if required. also making use of Active Blade Management Technology, which now can connect to two CT50 cleavers simultaneously. Features

Nyfors Product. The AutoCleaver LDF™ (Fujikura edition) is a high precision fiber cleaver, designed for cleaving of large diameter fiber (LDF). It provides outstanding cleaving performance for large diameter fibers from 230 μm up to 1000 μm in diameter. The unique and patent pending cleaving process generates typical cleave angles of less than 0.5 degrees.

This fully automatic optical fiber cleaver is designed for fast and flexible fiber processing in factory and laboratory environments. Easily interchangeable fiber handling parts enable high precision cleaving of different fibers in the range from 80 μm up to 600 μm cladding diameter with industry leading repeatability and consistency.
