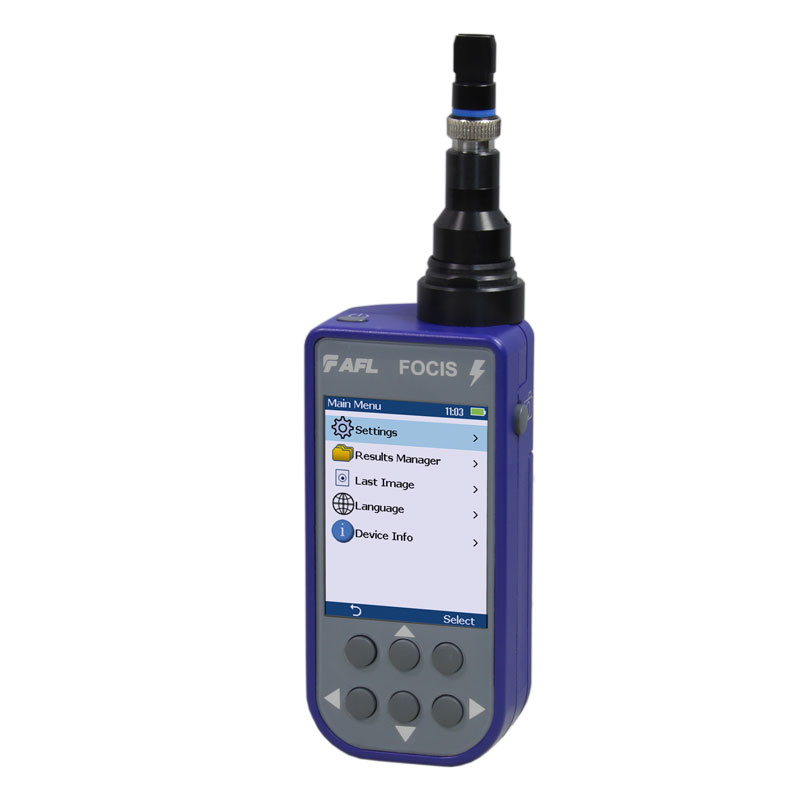

FOCIS Lightning No Wireless Multi-Fiber Optic Connector Inspection System
Ürün Kodu R025N8
FOCIS Lightning No Wireless (NW) is a self-contained multi-fiber connector inspection probe with integrated screen. It is intended specifically for the inspection of multi-fiber connectors and bulkheads such MPO and MTP® including multi-row varieties. The FOCIS Lightning NW can perform industry standard and user-defined end-face cleanliness analysis at a rate of about 1 second per fiber. Lightning NW stores connector level and individual fiber images, analysis, overlays, and zones tables locally. Pass / fail results in seconds: With the press of a single button, the FOCIS Lightning NW auto-focuses, captures, centers and analyzes the multi-fiber end-face image to industry standard and user-defined criteria. Untethered operation: With rechargeable battery and integrated 2.4” TFT color LCD screen, FOCIS Lightning NW can be used independently. Multi-fiber front-end adapter tips: Multi-fiber front-end adapter tips support single row and multi-row MT connector inspection for a wide range of patch cords and bulkhead-mounted connectors having either PC/UPC or APC polished end-faces. The probe snout includes a key which in combination with a slot on the adapter tips ensures that adapter tips never loosen during use, under any circumstances.
Features
- Removes Bluetooth and WiFi features for secure network facility compliance
- Extremely fast multi-fiber auto-analysis for datacom and telecom inspection applications
- Auto-focus and auto-centering for fast, easy inspection
- IEC, IPC, AT&T, and user-defined auto-analys
Specification Sheet
OTDR and insertion loss test and reporting Fast, accurate Pt-to-Pt and PON verification and troubleshooting Locate faults exceeding industry or user pass/fail thresholds Visually pinpoint location of macrobends or breaks
Ürün Başarıyla Sepete Eklendi
FOCIS Lightning is a compact self-contained inspection probe that captures and displays the entire MPO end-face image in less than two seconds. One button provides auto-focusing, centering, and pass/fail analysis at the connector and individual fiber level. It can complete a 24-fiber MPO inspection task in less than 15 seconds. Results can be easily shared via USB, WiFi, and Bluetooth®.
Ürün Başarıyla Sepete Eklendi
FOCIS Flex makes connector inspection simple, fast, and convenient. With the press of a single button, FOCIS Flex auto-focuses, captures and centers the end-face image, applies Pass/Fail rules, displays image and Pass/Fail results, saves results internally and/or wirelessly transfers data to a paired FlexScan OTDR or a smart device. It is fast, small, and easy to use to enable 100% connector inspection.
Ürün Başarıyla Sepete Eklendi
The FOCIS Flex NW addresses the need of network maintenance contractors operating in secure environments, where devices emitting radio frequency (RF) communication signals are prohibited, such as government and defense facilities and restricted private enterprisenetwork facilities. The FOCIS Flex NW removes, in both hardware and software, Bluetooth and WiFi communications transceiver functions. The FOCIS Flex NW includes internal storage for 10,000 ferrule end-face images and pass/fail results, as well as a USB mass storage device interface, so that inspection results can be transferred at the end of the workday.
