FOCIS Yıldırım Çok Elyaflı Konnektör İnceleme Sistemi

The One-Click Cleaner is designed to clean MPO and MTP® multi-fiber connectors used in data centers and other high density optical networks. The One-Click Cleaner MPO / One-Click Cleaner MPO-16 are revolutionary push-type cleaners which simplify cleaning of the ferrule end-face of both exposed MPO/MTP® connectors and MPO/MTP® connectors in adapters, both 12 fiber and 16 fiber (including multi-row variants). As with all One-Click Cleaners. the One-Click Cleaner MPO / MPO-16 use the innovative push-to-clean design. The mechanical push action advances the optical grade cleaning tape while effectively and gently cleaning the end-face of the connector.

FCC2 Enhanced Fiber Connector Cleaner is a nonflammable, environmentally safe, residue-free solvent engineered to clean fiber connector end-faces and bare fiber before field terminating or fusion splicing. The 3-way dispenser is intended for easy one-handed use with fiber wipes, convenient wetting of CCT connector cleaning tips, and spray nozzle functionality. Packaged in unique, spill-proof containers, it can be shipped with connector cleaning and termination kits so technicians avoid wasting time sourcing a cleaner locally. Offering high purity and fast consistent cleaning, FCC2 was developed with and is packaged by Micro Care Corporation, a world leader in cleaning solvents.

Today’s splicing equipment is fast, efficient, and requires minimal maintenance due to advances in splicing technology. However, environmental contamination, such as dust, dirt, and fiber coating debris, as well as, the silica deposits generated during the fusion process eventually find their way to the optical elements and v-grooves. This contamination will offset the fibers and degrade performance. Thorough cleaning of a fusion splicer’s optical elements and alignment V-grooves is critical to ensure successful trouble-free splicing operations. CS-1 Cotton Swabs are especially useful for such cleaning operations. The small size of the CS-1 swabs ensures accessibility in tight places and will not leach out chemicals or lint and contaminate optical elements.

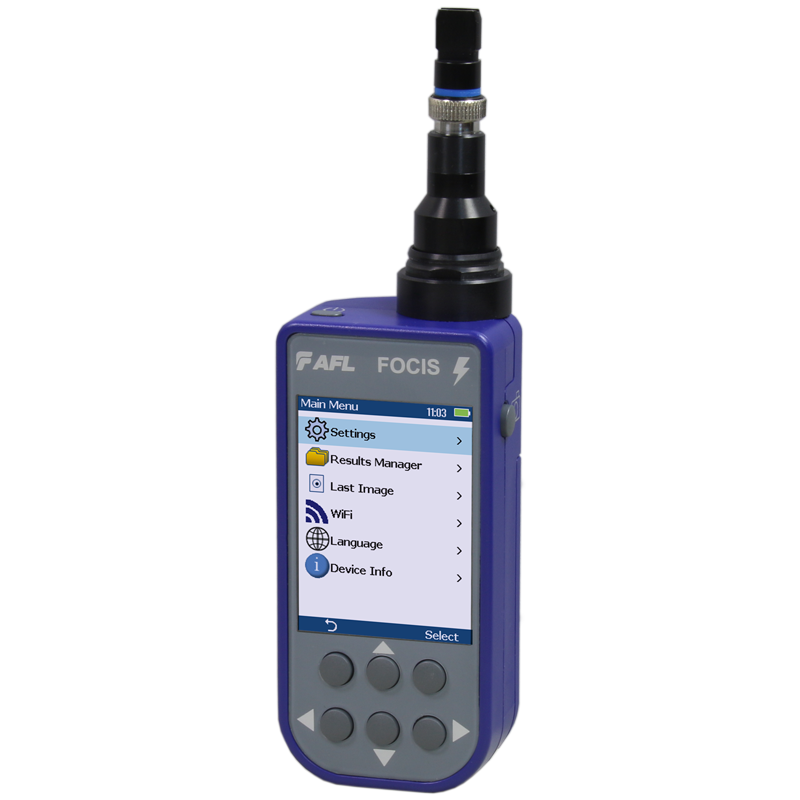

FOCIS Lightning No Wireless (NW) is a self-contained multi-fiber connector inspection probe with integrated screen. It is intended specifically for the inspection of multi-fiber connectors and bulkheads such MPO and MTP® including multi-row varieties. The FOCIS Lightning NW can perform industry standard and user-defined end-face cleanliness analysis at a rate of about 1 second per fiber. Lightning NW stores connector level and individual fiber images, analysis, overlays, and zones tables locally. Pass / fail results in seconds: With the press of a single button, the FOCIS Lightning NW auto-focuses, captures, centers and analyzes the multi-fiber end-face image to industry standard and user-defined criteria. Untethered operation: With rechargeable battery and integrated 2.4” TFT color LCD screen, FOCIS Lightning NW can be used independently. Multi-fiber front-end adapter tips: Multi-fiber front-end adapter tips support single row and multi-row MT connector inspection for a wide range of patch cords and bulkhead-mounted connectors having either PC/UPC or APC polished end-faces. The probe snout includes a key which in combination with a slot on the adapter tips ensures that adapter tips never loosen during use, under any circumstances.
