Fiber Optik Kablolar

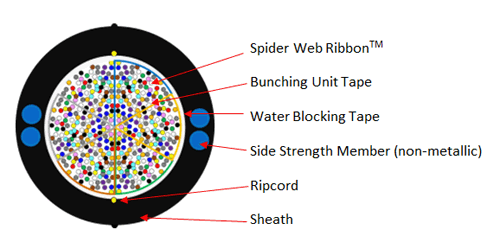

WTCTM with SWRTM 288-6912F full dry optical ribbon cable
Ürün Kodu QCCHWA
Wrapping Tube CableTM (WTC) consists of Fujikura's novel Spider Web RibbonsTM (SWR) which are wrapped by a water blocking tape and non-metallic side strength members embedded in the sheath. Compared to normal loose tube cable, this full dry structure ribbon cable drastically reduces the cable deployment time by eliminating the process to wipe out jelly and by mass fusion splicing just like conventional ribbon cable. WTC achieves the world's highest density of optical fiber ribbon cable and allows effective utilization of existing conduits. Suitable for lashed aerial and duct installation applications.
- 288- 6912 fiber counts
- Appplying Spider Web Ribbon
- 12 fiber mass fusion splicing
- Easy separation into single fibers by hand
- Easy identification of ribbons and fibers
- Full dry cable
- Easy and quick access to fibers
- Smallest cable diameter and lightest weight in the world
- Long cable length per drum
- Reciprocal fusion splice of 250μm and 200μm fiber
Specification Sheet
These loose tubes are stranded around a central strength member. The cable core is water proof with water blocking compound. The corrugated steel armor further protected by outer sheath provide excellent mechanical performance. Suitable for duct and direct burial applications.
Ürün Başarıyla Sepete Eklendi
This type of optical cable is aimed to be used for voice, data, broadband and CATV transmission in Long Distance, Backbone and Local Area Networks with Direct Burial and Duct installation methods
Ürün Başarıyla Sepete Eklendi
This type of optical cable is aimed to be used for voice, data, broadband and CATV transmission in Long Distance, Backbone, Local Area and Metro Networks with Aerial installation method.
