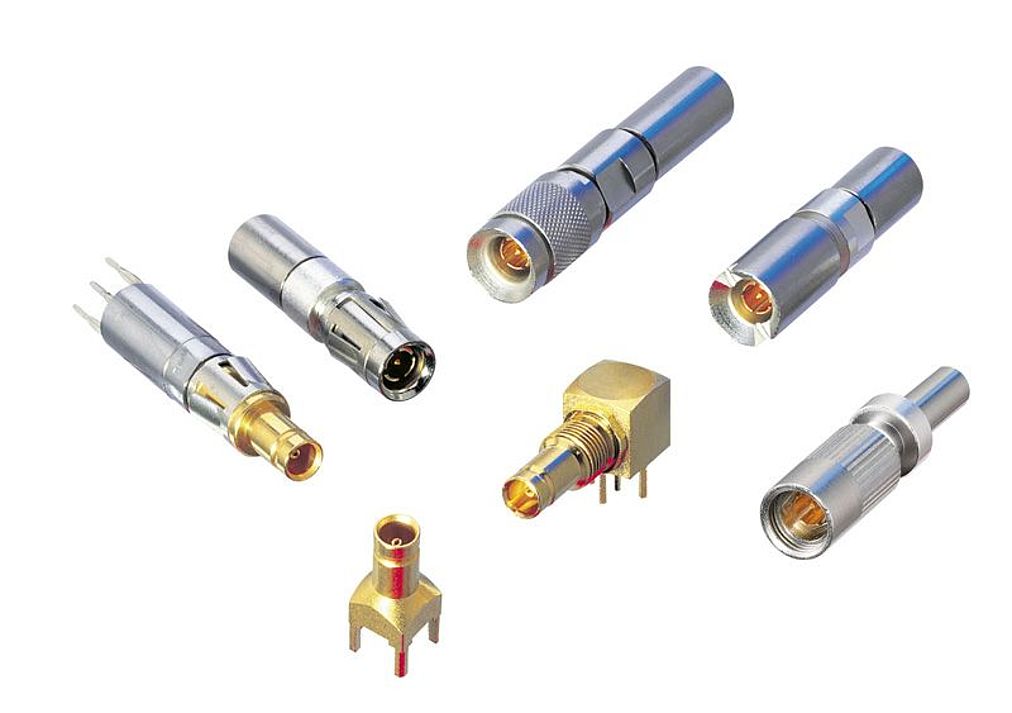

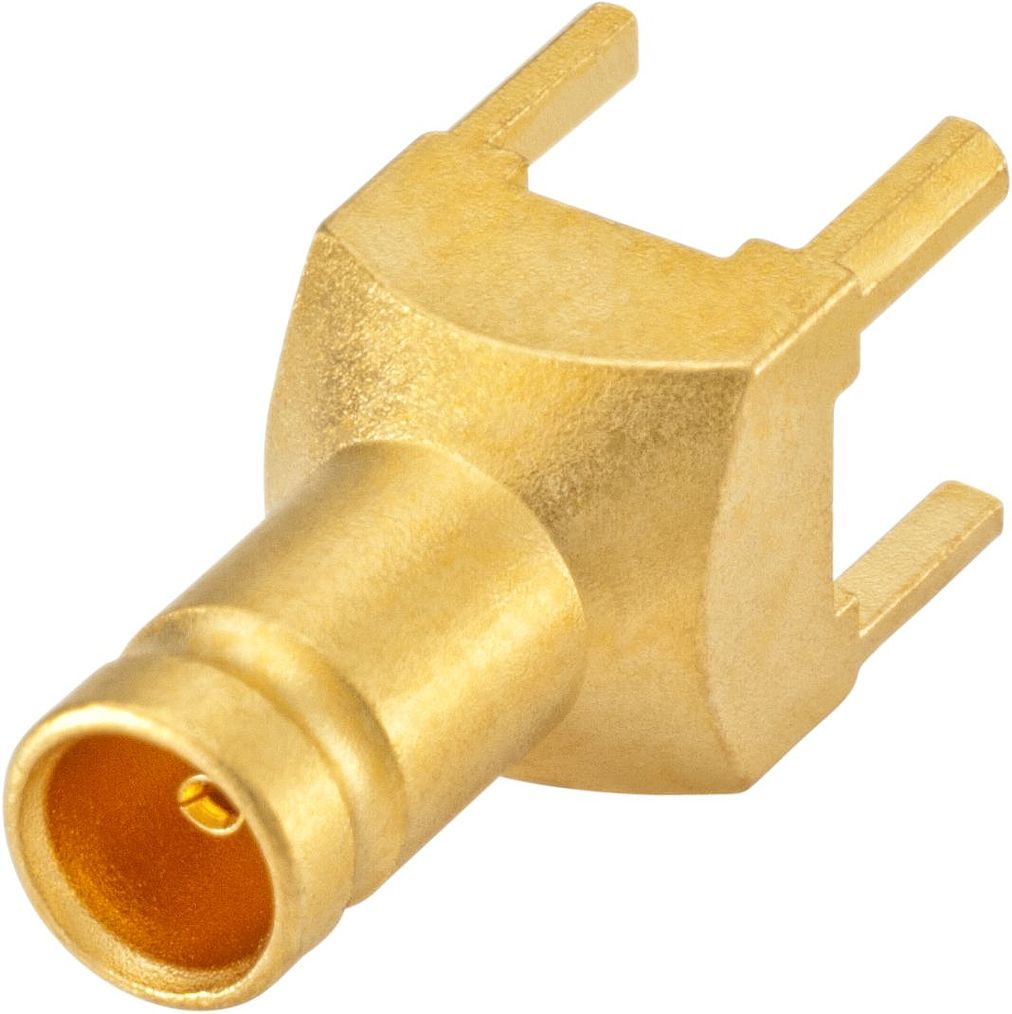

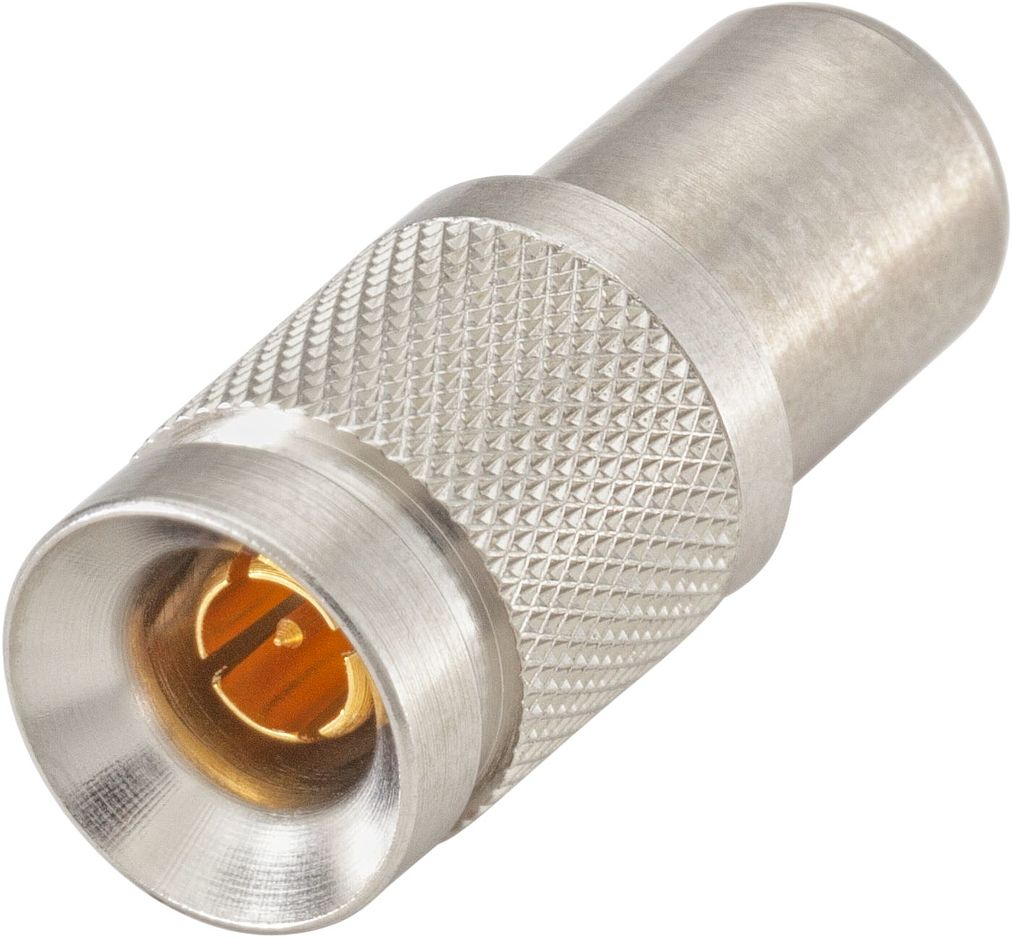

1.0-2.3 DIN 47297

Rosenberger’s High-Voltage Test & Measurement Solutions deliver deep insights into the EMC behaviors of high-voltage Automotive Traction Networks. Using our powerful HV measurement coupler, dedicated calibration software and calibration kits, EMC experts can perform RF voltage and current reliability calculations with absolute precision. HPK Measurement Coupler The newly developed HV Measurement Coupler for HPK series from Rosenberger enables a minimally invasive testing method for measuring the reliability of RF voltages and currents. In conjunction with a dedicated calibration process, patented algorithms accurately calculate the RF currents and voltages in the calibration reference plane. Furthermore, due to the minimal invasion techniques deployed by the coupler there is no risk of impairment to harness performance when under test. The watertight and robust design also means testing can be carried out under any environmental conditions. HPK Calibration Kit Although the HPK measurement coupler includes calibration data, an optional HPK calibration kit is also available. Combined with the RCTD software it enables customers to manage their own calibration requirements themselves. A set of all necessary calibration standards is provided and a description for the acquisition of calibration files is included in the RCTD user manual. Rosenberger recommends 12-monthly calibration intervals and offers a recalibration service to HPK coupler customers if required. RCTD Software Rosenberger Calibrated Time Domain Software (RCTD) was developed to enhance EMC-related, automotive high-voltage measurement capabilities. Within the RCTD Software, the time domain data captured by an oscilloscope using the high-voltage coupler is post-processed to calculate high frequency currents and voltages at the given calibration plane within the high-voltage power train. Therefore, calibration data is created and taken into account before measurement occurs. Delivered on a USB-stick in a sturdy wooden box, the RCTD Software includes the functions to create calibration data and post process the measurement data on a PC or directly on LeCroy HDO oscilloscopes for real-time evaluation. The software can be also used for any other directional coupler.

The Rosenberger RPC-SL series are interchangeable port connector systems for use with test equipment where test ports are frequently mated and re-mated. Under such heavy usage, Rosenberger RPC-SL interchangeable port connectors allow the equipment/device interface to be fully protected from potential damage, avoiding the risk of costly repairs. The RPC-SL port connector includes a panel mounting half and a sexless interface which features two spring-loaded butt contacts. This ensures no wear occurs during mating and eliminates the possibility of accidental damage from mismatching of connector halves. Furthermore, the interface between the panel mount and the adaptor is slotted, preventing the mating faces from rotating and possible damage. The RPC-SL portfolio offers both 26.5 GHz and 40 GHz versions. While adaptors can be interchanged and are available in different connector series, the connector heads in these two ranges are not compatible and can only be used with their own system.

Rosenberger RPC-SP 50 Ω precision connectors are designed for applications up to 22 GHz where quick and reliable interconnects are essential. Intermateable with OSP and BMA connectors, the floating construction allows compensation for axial and radial misalignment while the innovative blind mate self-finding mechanism ensures fast, easy connection and disconnection, bringing significant time and cost reductions. Furthermore, tightening the connection requires no additional tooling. RPC-SP connectors are therefore ideal for use where space is at a premium such as in many rack and plug-in applications. The product range comprises cable, panel and PCB connectors, adaptors to other coaxial connector series, airlines as well as test & measurement accessories such as RPC-SP calibration kits, test cables or measurement equipment (open – short – load).

Rosenberger SMB subminiature coaxial connectors suit various applications up to 4 GHz. The snap-on locking mechanism provides a fast and reliable connection for high packing density applications. These versatile connectors can be used in internal devices and cable assemblies. Please note: Rosenberger defines male – female according to the design of center contact.
