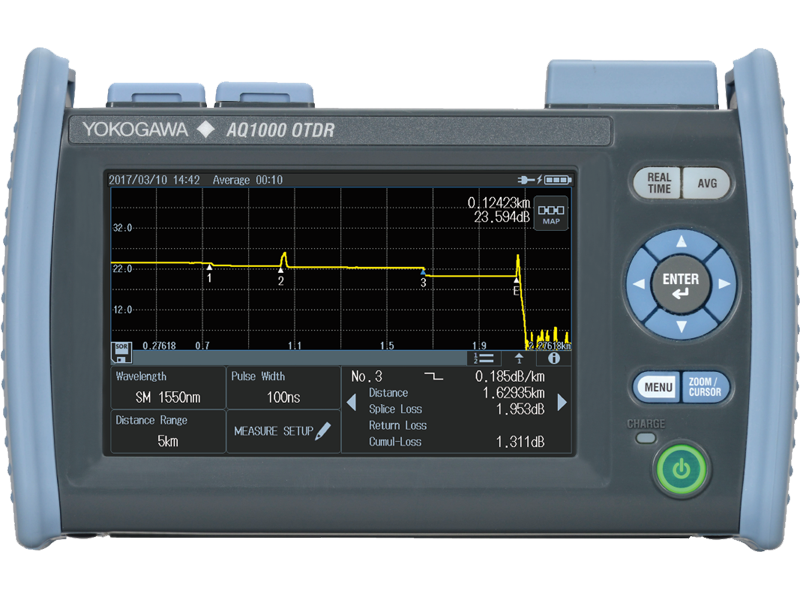

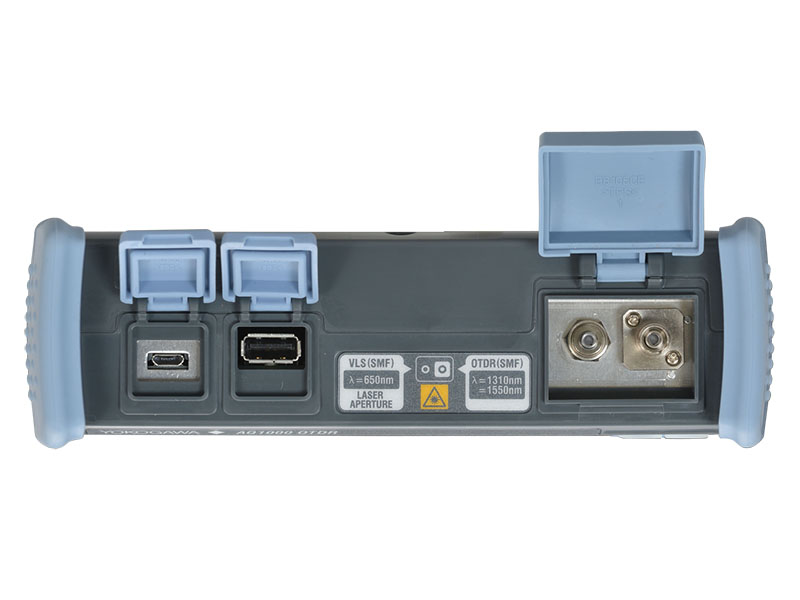

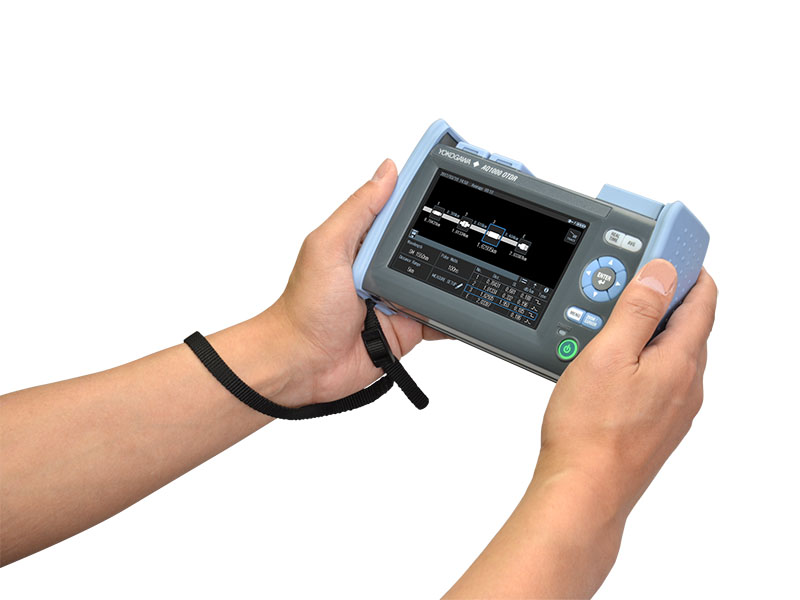

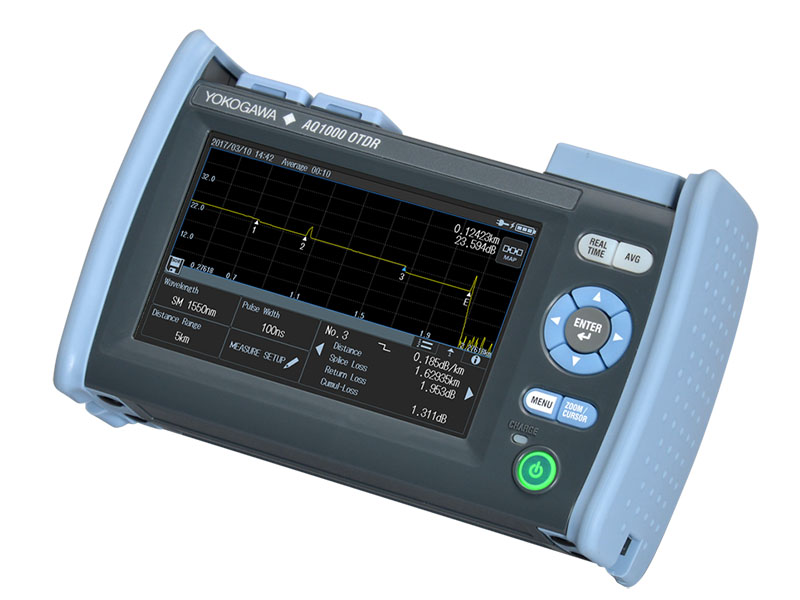

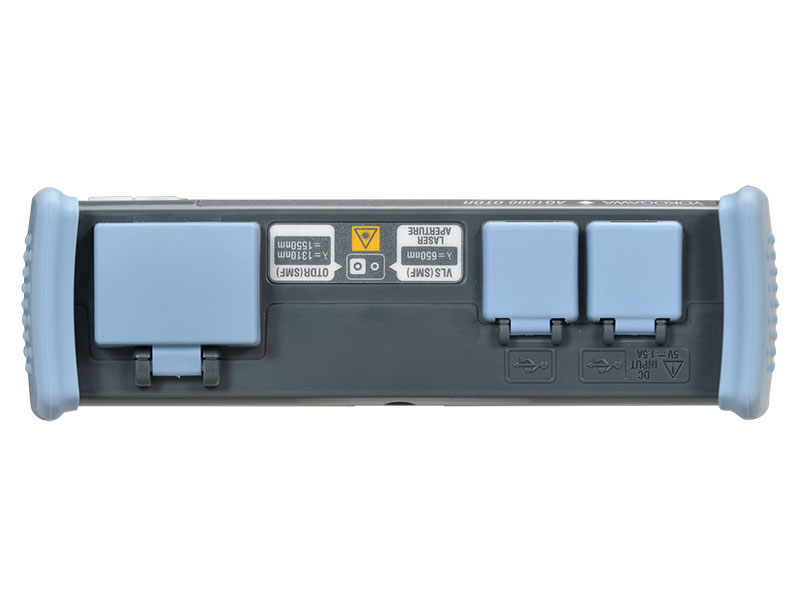

AQ1000 Giriş Seviyesi Optik Zaman Alanı Reflektometresi

AQ7932 is application software that performs analysis of trace data from the OTDR on a PC, and conveniently creates professional reports. The built-in report creation wizard function makes this task simple, quick and easy. Display up to eight traces on screen, and perform a variety of analyses including multi-trace analysis and differential trace analysis for comparing recent waveforms with old ones, and use the 2 way trace analysis function for analyzing average values of data measured from both directions in the optical fiber.

The AQ6370E is the new model in Yokogawa's most popular telecom class OSA. With a versatile wavelength range of 600 nm to 1700 nm, it is ideal for both telecom and general purpose applications. The unique free-space input design allows him to test both DWDM-class single-mode and VCSEL-sourced multimode fibers in one single model. The new high-speed measurement mode, high close-in dynamic range mode, touch panel, and APP function greatly improve measurement efficiency. Wavelength range：600 to 1700 nm Wavelength accuracy：±0.008 nm typ. Wavelength resolution：0.02 nm Close-in Dynamic range：78 dB typ. Level range：+20 to -90 dBm Up to 2x faster measurement: SMSR mode Sharper spectrum measurement: HCDR mode Large touchscreen LCD
