Optik Test Cihazları

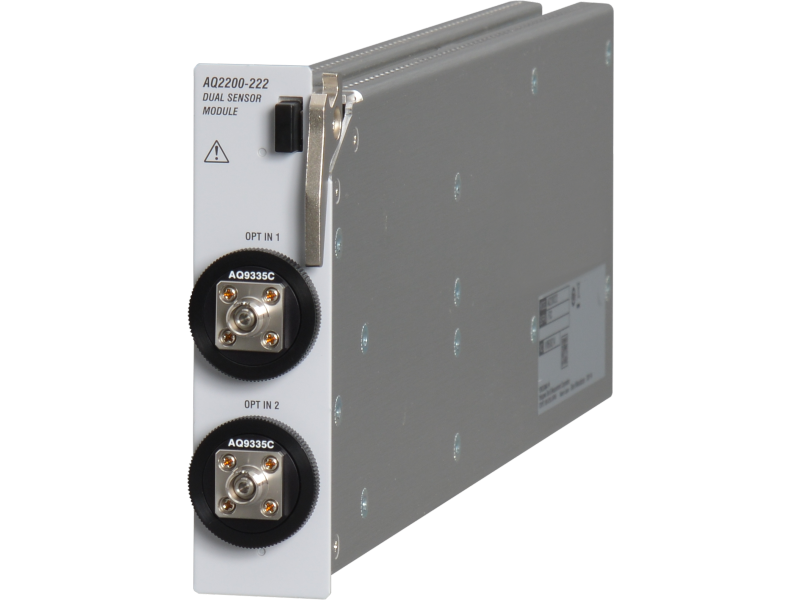

AQ2200-222 Çift Sensör Modülü (800 ila 1700 nm)
Ürün Kodu TMGOGN
The AQ2200-222 is a high-performance yet compact module equipped with two sensors. The module offers high-speed sampling, low polarization dependency, and rich data processing capabilities for improved measurement throughput and low-cost multi-port measurement. With two high-performance sensors in one slot, this Optical Power Meter Sensor Module is ideal for space-saving, multi-port measurements.
- Ideal for powerful yet compact systems.
- Wide wavelength range: 800 to 1700 nm
- Wide power range: -90 to +15 dBm
- High-speed measurement: 100 µs (minimum sampling period)
- Optical connector compatibility: FC, SC, MU, and LC
- Communication measuring instruments to build versatile measuring systems
BENZER ÜRÜNLER
The AQ6360 is the fastest optical spectrum analyzer for optical device manufacturing offered by Yokogawa. It is a cost-effective optical spectrum analyzer ideal for industrial manufacturing of telecom devices such as lasers, optical transceivers and optical amplifiers. The AQ6360 features a wavelength range of 1200 to 1650 nm for ideal manufacturing test performance. Its free space optical input structure design allows for guaranteed high coupling efficiency and measurement repeatability. Additional features and functions of the AQ6360 include built-in analysis functions and Ethernet and GPIB remote interfaces.
Ürün Başarıyla Sepete Eklendi
Ürün Başarıyla Sepete Eklendi
The AQ2200-651 Signal Generator module reduces the complexity and cost of 10G optical transceiver testing by combining Signal Generation functions into the same mainframe that provides bus and power control while performing BERT and Optical testing. This allows a single programming interface to control all aspects of the transceiver test, simplifying test setup, decreasing test time and increasing productivity. The wiring complexity and test bench size are reduced by replacing up to 5 Signal Generators with a single module.
Ürün Başarıyla Sepete Eklendi
The AQ6370E is the new model in Yokogawa's most popular telecom class OSA. With a versatile wavelength range of 600 nm to 1700 nm, it is ideal for both telecom and general purpose applications. The unique free-space input design allows him to test both DWDM-class single-mode and VCSEL-sourced multimode fibers in one single model. The new high-speed measurement mode, high close-in dynamic range mode, touch panel, and APP function greatly improve measurement efficiency. Wavelength range:600 to 1700 nm Wavelength accuracy:±0.008 nm typ. Wavelength resolution:0.02 nm Close-in Dynamic range:78 dB typ. Level range:+20 to -90 dBm Up to 2x faster measurement: SMSR mode Sharper spectrum measurement: HCDR mode Large touchscreen LCD
