Modüler Üretim Test Sistemi

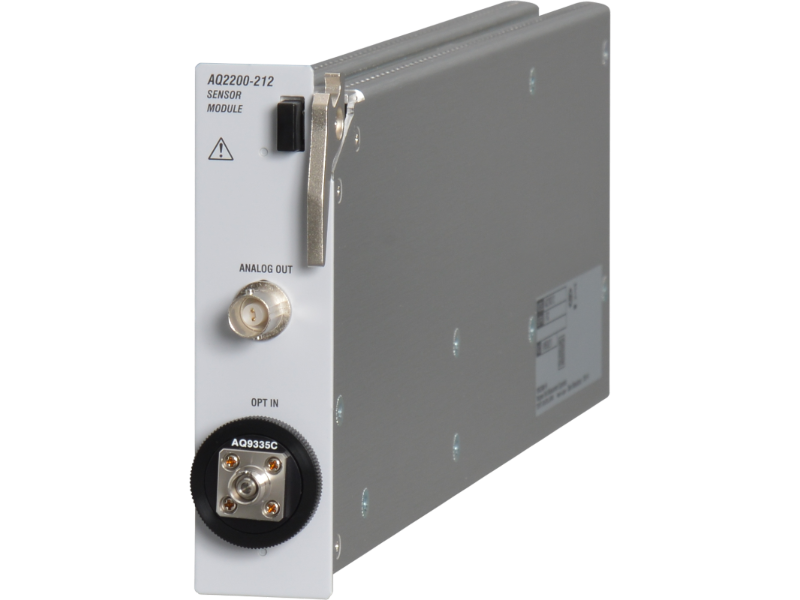

AQ2200-212 Sensör Modülü (800 ila 1700 nm)
Ürün Kodu U1HAO0
The AQ2200-212 is high-performance single channel sensor module with an analog output port.
- Wide power range: -90 to +15 dBm
- High-speed measurement: 100 µs (minimum sampling period)
- Optical connector compatibility: FC, SC, MU, and LC
- Can be combined with various AQ2200 series modules or other Yokogawa's optical communication measuring instruments to build versatile measuring systems.
Specification Sheet
The AQ2200-131 and AQ2200-132 are single and dual channel tunable light source modules. The output wavelength can be conveniently set to the predefined DWDM grid channels.
Ürün Başarıyla Sepete Eklendi
The AQ2200-222 is a high-performance yet compact module equipped with two sensors. The module offers high-speed sampling, low polarization dependency, and rich data processing capabilities for improved measurement throughput and low-cost multi-port measurement. With two high-performance sensors in one slot, this Optical Power Meter Sensor Module is ideal for space-saving, multi-port measurements.
Ürün Başarıyla Sepete Eklendi
The AQ2200-412 OSW module is a space-saving 1 x 16 optical switch featuring low insertion loss and superior switching reproducibility, in a two-slot size module. This module allows to connect up to 16 DUT and improve testing efficiency in automatic test system.
