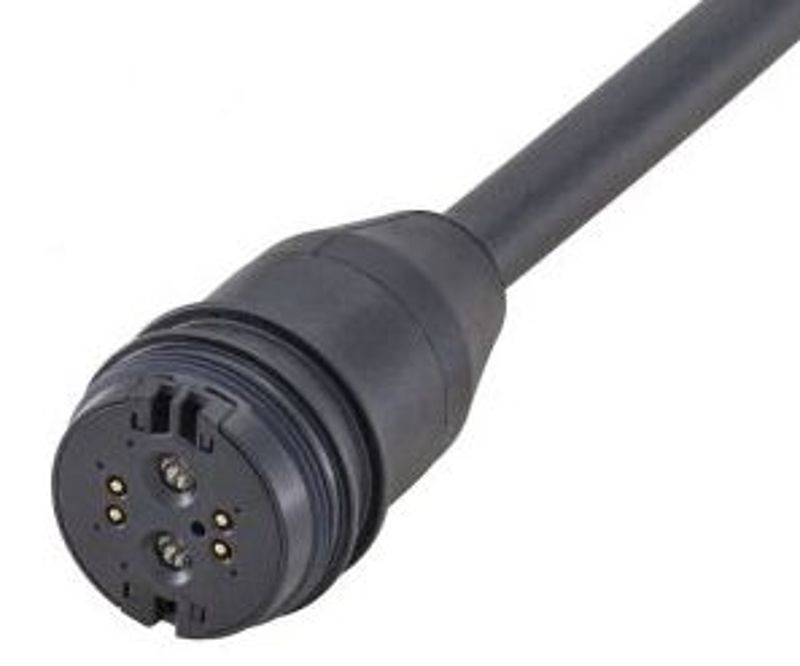

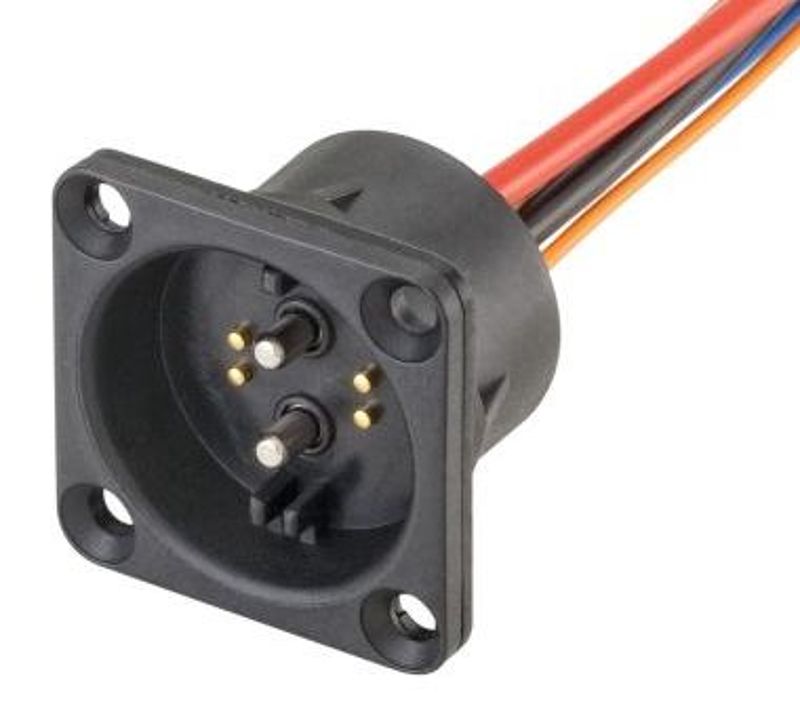

RoPD®
Ürün Kodu OLK5N1
Electric Vehicles (LEV) including e-bikes, e-scooters and pedelecs as well as for UGVs and drones. Providing fast and reliable magnetic connection, these are particularly suited to data communication and power transmission of voltages up to 60 V and current loads up to 40 A. The magnetic locking and precision self-mating capability prevents any accidental or forced disconnection from damaging the connector or the LEV. Furthermore, the high tolerance pin and socket design permits a large number of mating cycles. The RoPD® connection system is ideal for many LEV connection applications – including battery changing and charging – where frequent connection and disconnection is required. The four data contacts and two power transmission pins make a hot-plug capability unnecessary as the data contacts activate the power following connection. For added flexibility the data contacts can be used as a BUS system with an additional supply voltage. Versions of the RoPD® system are also available for EnergyBus applications.
- Interface according Rosenberger RoPD®
- European Patent No. EP1537632
- Frequency range (data pins) tbd
- Current (power pins) 10 A, 25 A, 30 A, 40 A
- Voltage (power pins) 60 V DC
- Voltage (data pins) 12 V
- Waterproof (mated) IP67
- Temperature range -40 °C to +65 °C
- 4 pins for data communication and 2 pins for power transmission
- 100% self-location
- Shallow mounting depth
- Waterproof and robust
- Shock and vibration proof
- Reliable contact pressure
- Zero-force mating
- UV resistant
- Mating cycles > 2,500
- Magnetic self-mating mechanism
Specification Sheet
Rosenberger provides a wide product range of solderless PCB connectors for challenging test & measurement demands and for frequencies up to 110 GHz. These PCB connectors can easily be assembled by using screws. Standard screws are included, optional screws for thicker PCBs are available on request.
Ürün Başarıyla Sepete Eklendi
Rosenberger H-MTD® is a 360° fully shielded differential connector system for Ethernet applications. The newly developed system has successfully combined high-performance data transmission, of up to 15 GHz or 20 Gbps, in a compact yet robust automotive grade housing. Apart from ensuring high-bitrate data transmission, savings on installation space and weight, a further major advantage of this connector system is its modularity, providing the flexibility to support a wide range of Ethernet applications and industry protocols. Among others, this makes the Rosenberger H-MTD® highly suited for use by those designing solutions for the automotive industries.
Ürün Başarıyla Sepete Eklendi
For ensuring fast and easy connection Rosenberger RoDI® connectors comprise five contacts and a magnetic self-mating locking mechanism. They are ideally suited to diagnostic and data transfer in building services, industrial control and bus systems, even for use in harsh environments.
Ürün Başarıyla Sepete Eklendi
Rosenberger RPC-7 “hermaphroditic” connectors with 7 mm diameter at outer contact are designed for precision measurements up to 18 GHz and are suitable for semi-rigid cables and microwave components. Mating electrically with center and outer conductor by end-surface (butt) contact, the mechanical connection is designed as a counter-sinkable threaded socket. For total flexibility, these low reflection connectors are intermateable with all common 7 mm series connectors including APC-7, PC-7, GPC-7 or Precifix AA. Furthermore, RPC-7 and RPC-N connector heads are interchangeable using the same bead type. The wide product range comprises connectors and connector heads, adaptors, interchangeable port connectors, airlines as well as test & measurement accessories such as RPC-7 calibration and verification kits, test cables, attenuators or measurement equipment (open – short – load).
